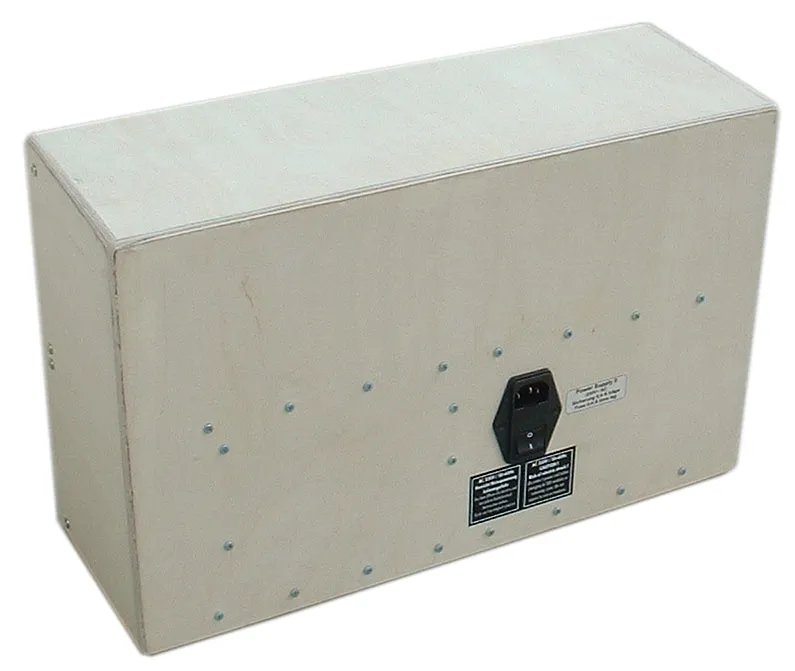

An economical version of the A-100 suitcase, the A-100 series Low-Cost Case is a no frills case with the A-100PSU3 power supply.

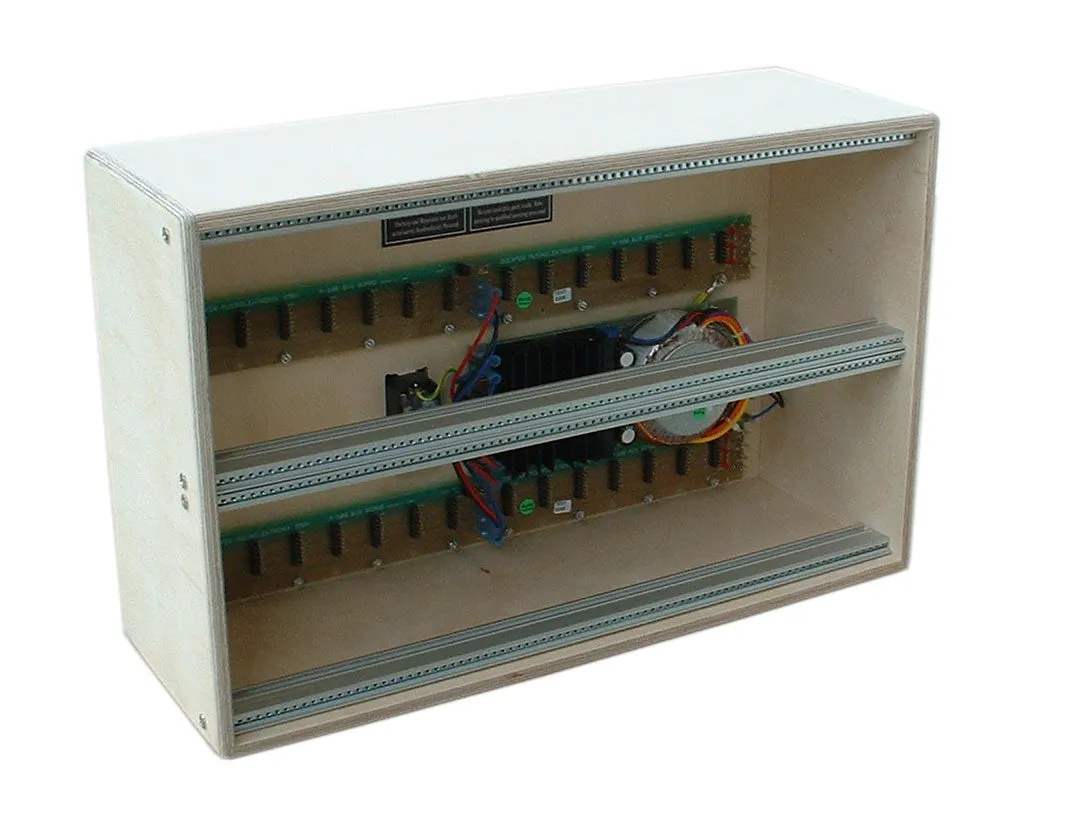

In other respects the low cost suitcase is identical to the more expensive suitcase, with two bus boards. The case is made of raw unfinished wood without lacquer, allowing you to customise finishing. This case is also available as the A-100LC6V with black coating.

Dimensions

• Outside: approx. 445 x 275 x 160 mm
• Inside: 2 x 84 HP x 3 U (two bus boards), useable depth for A-100 modules: approx. 80 mm in the power supply area (bottom right), resp. approx. 110 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
• Weight (without modules): about 4 kg

Power

• Maximum output current 12V/2000 mA, -12V/1200mA, 5V/4000mA

Product Specs

• Item Number: 12967
• Make:
• Model:
• Condition:
• Finish: Unfinished
• Categories: ⇒
• Made In: Germany
• MPN: A-100LC6sw
• EAN: 4250711105907
